511 Panel Saw, 3HP 1PH 115V
Stock Number:
1510007

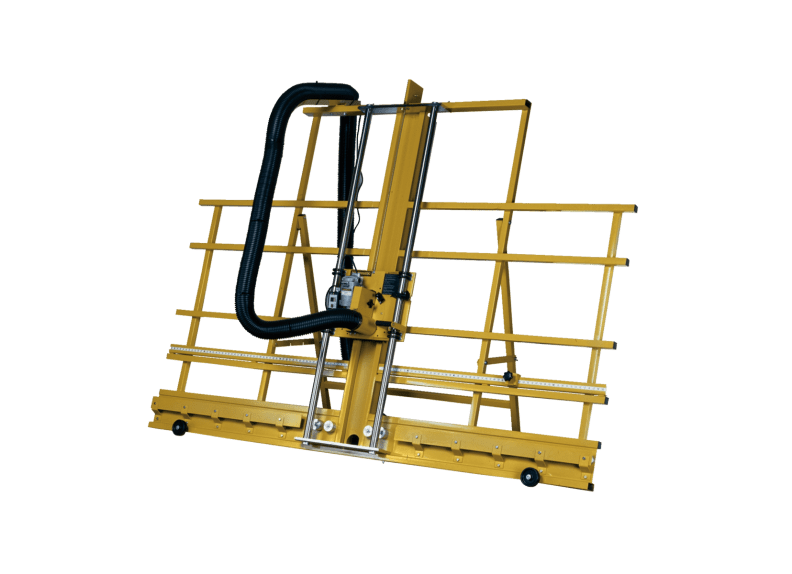

Powermatic 511 Vertical Panel Saw (1510007)
If you work with sheet goods, this Powermatic 511 Vertical Panel Saw Machine has plenty of power for the most demanding cuts. The panel saw carriage assembly is designed with eight unique guide roller assemblies allowing it to glide effortlessly along the polished stainless steel rails. This Powermatic Vertical Panel Saw features a powerful 3HP worm-drive motor which rotates in the carriage, adding the versatility to perform rip cuts. The solid aluminum rollers with outside support bracket assure smooth feeding of stock and perfect 90° cuts every time. This saw will handle panels up to 5 feet tall. It also includes horizontal and vertical scales and casters for mobility. The true counterweight system keeps the saw carriage in the desired position when loading or unloading panels. With the innovative dual dust collection ports and nylon brush surrounding the blade, this saw provides superior dust collection from the front and the rear side of the panel.
3HP worm drive saw motor rotates in carriage to perform rip cuts
Casters for easy mobility
Dual 4" dust ports
Dual 4" dust ports with nylon brush surrounding blade for front and rear dust exhaust
Heavy-duty welded one-piece steel frame prevents vibration and ensures solid support
Polished stainless steel guide tubes with eight guide roller assemblies provide smooth carriage glide
Solid aluminum rollers with outside support brackets for square cuts
True counterweight system keeps the carriage where you position it while loading stock
| Stock Number | 1510007 |
|---|---|
| Blade Diameter (In.) | 8 |
| Blade Speed (RPM) | 4300 |
| Dust Port Outside Diameter (In.) | 4 |
| Maximum Cross Cut Length (In.) | 62 |
| Maximum Cut Thickness (In.) | 1-1/2 |
| Motor Power (HP) | 3 |
| Motor Voltage (V.) | 115 |
| Prewired Voltage (V.) | 115 |
| Prop 65 | None |
