60C, 8-Inch Jointer, HSS Knife Cutterhead, 2 HP, 1Ph 230V
Stock Number:
1610084K

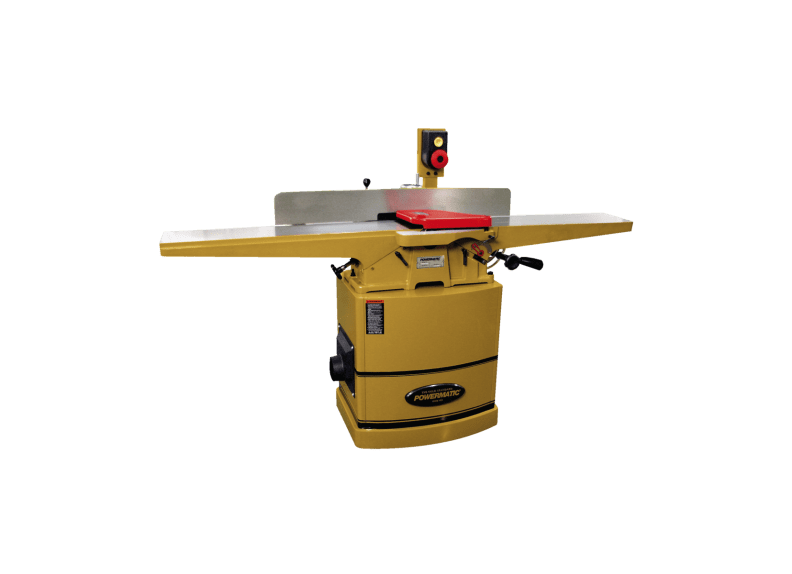

Powermatic 60C 8" Jointer, 2 HP, 1PH 230V (1610084K)
This 8" Jointer meets the demand for accuracy while combining unique, user-friendly functions. The infeed table lever can be used to rapidly position table height, then the handle rotated for fine-adjustment of cut depth. Fence tilting is accomplished by a worm gear system, smoothly operated by a simple handwheel. The tables provide 73” long extended support. A non-mar insert in the fence protects the table from scratches during adjustments. The jointer is available with a three high speed steel knife cutterhead, or a helical cutterhead with 54 four-sided knife inserts. The operating switch is high mounted for easy reach, and the push blocks have a magnetic base - store them on any metallic surface for instant access.
Adjustment lever offers quick infeed table positioning and fine-tuning of cut depth
Extra long tables are mounted on dovetailed ways for extended workpiece support
Handwheel operated worm gear system for smooth fence tilting
High mount switch for operator convenience
Magnetic push blocks can be stored on the machine within constant reach
Non-mar fence insert protects table surface
Three straight high-speed steel knives give a clean cut
| Stock Number | 1610084K |
|---|---|
| Cuts Per Minute | 21,000 |
| Cutterhead Diameter (In.) | 3 |
| Cutterhead Speed (RPM) | 7000.0000 |
| Cutting Capacity (W x D) (In.) | 8 x 1/2 |
| Dust Collection Minimum CFM Required (CFM) | 600 |
| Dust Port Outside Diameter (In.) | 4 |
| Infeed Table Length (In.) | 35-1/4 |
| Motor Amps | 9 |
| Motor Power (HP) | 2 |
| Motor Voltage (V.) | 230 |
| Number of Knives | 3 |
| Prewired Voltage (V.) | 230 |
| Prop 65 | Cancer and Reproductive Harm |
| Rabbeting Capacity (In.) | 1/2 |
| Recommended Circuit Size (Amps.) | 20 |
| Type of Cutterhead | Straight Knife |
