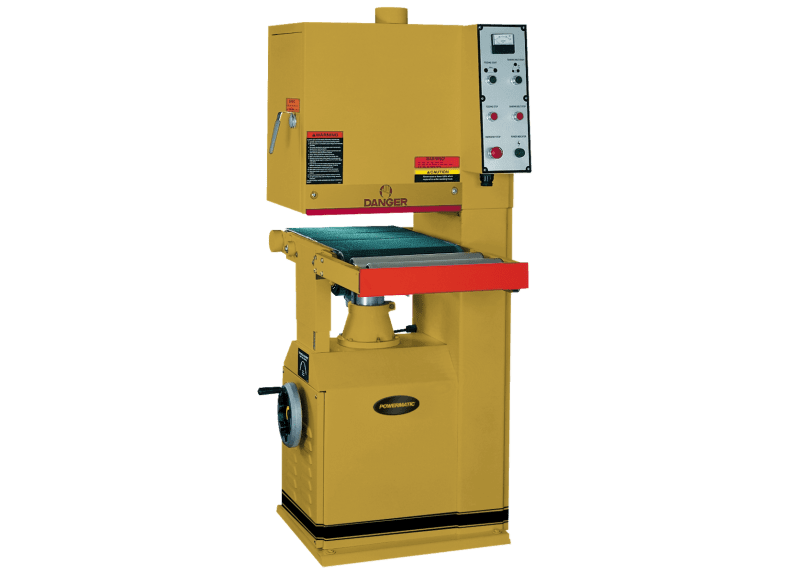

1632, 16-Inch Open-End Belt Sander, 5 HP, 1Ph 230V
Stock Number:
1791250
The 16" Open-End Belt Sander has front mounted controls and a load meter, which maintains a constant check during operation. Metal-tipped safety limiters inside the machine will stop the sander immediately should belt breakage occur. The combination head means a more consistent finish, and pneumatic conveyor belt tracking keeps belts automatically centered.
Air pressured oscillating movement for smoother surfaces
Choose from 15 or 32.5 FPM dual feed speed
Conveniently mounted load meter maintains constant check during operation
Extendable workpiece support arm
Front facing emergency safety stop
Limiters will stop sander instantly if belt breakage occurs
Pneumatic sanding belt tracking keeps belt centered
Side access door for easy belt changes
Combination head promotes a more consistent finish
| Stock Number | 1791250 |
|---|---|
| Air Required | 4 at 5 atm |
| Dust Collection Minimum CFM Required (CFM) | 800 |
| Dust Port Outside Diameter (In.) | 4 |
| Feed Motor Power (HP) | 1/4 |
| Feed Rate (FPM) | 15/32.5 |
| Maximum Board Thickness (In.) | 5 |
| Maximum Board Width (In.) | 16 |
| Minimum Board Length (In.) | 13-3/4 |
| Motor Power (HP) | 5 |
| Motor Voltage (V.) | 230 |
| Prewired Voltage (V.) | 230 |
| Prop 65 | Cancer and Reproductive Harm |
| Recommended Circuit Size (Amps.) | 40 |
| Sanding Belt Speed (FPM) | 2,200 |
| Style (Type) | Wide Belt Sander |
