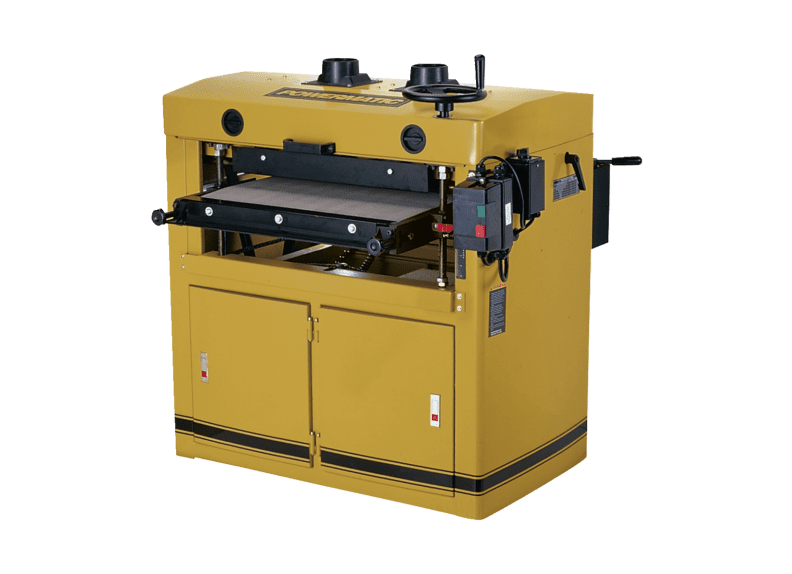

DDS-225, 25-Inch Dual-Drum Sander, 5 HP, 1Ph 230V
Stock Number:
1791290
Finally, a production class Dual Drum Sander that is loaded with features. This machine features a 5HP motor to power the twin poly V-belts. The dual steel drums have a hard durometer rubber coating to assure a flat, mar free finish. Independently adjustable rear drum makes fine tuning easy. A heavy cast iron table incorporates four solid jackscrews with chain drive timing to keep it level at all times. The heavy-duty poly conveyor belt provides a positive grip on the stock. The 1/4HP feed motor is coupled to a two-speed forward/reverse gearbox that will sand 8 and 12 surface feet per minute. The heavy steel cabinet provides years of vibration free sanding, with plenty of storage space underneath.
Dual drum head for superior finish
Dual dust ports with directional baffles for more efficient dust removal
Forward/reverse conveyor belt grips stock evenly
Full size cast iron table for solid support
Hard durometer rubber coating on steel drums provides flat, smooth finish
Independently adjustable rear drum for fine tuning
Two-speed gearbox for wide range of sanding projects.
| Stock Number | 1791290 |
|---|---|
| Conveyor Speed (FPM) | 8 and 12 |
| Drum Diameter (In.) | 6 |
| Drum Length (In.) | 25 |
| Drum Speed (RPM) | 1,700 |
| Dust Collection Minimum CFM Required (CFM) | 600 |
| Dust Port Outside Diameter (In.) | 4 |
| Maximum Board Thickness (In.) | 5-1/4 |
| Maximum Board Width (In.) | 25' |
| Minimum Board Length (In.) | 9 |
| Minimum Board Thickness (In.) | 1/32 |
| Motor Power (HP) | 5 |
| Prop 65 | Cancer and Reproductive Harm |
| Recommended Circuit Size (Amps.) | 40 |
| Style (Type) | Dual Drum |
| Weight (Lbs.) | 730 |
